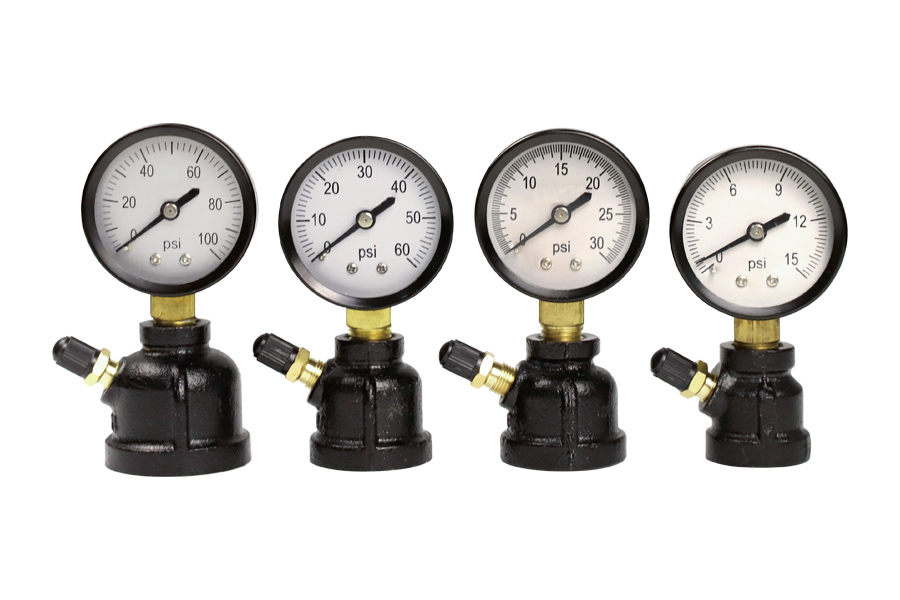

Bell Body Test Gauge for Gas Line
- Clear and easy-to-read dial with transparent cover.
- Designed for air pressure testing; built tough for reliable operation.
- Equipped with a black iron threaded bell to ensure a secure, leak-proof fit.
- Features a 2-inch diameter gauge face for clear visibility.
- Simple push-fit installation — no tools necessary.
General Properties
- Gauge Material: Steel, Brass
- Body Materia: Steel
- Window: Clear Plastic
- Dial Size: 2"
- Dial Plate: Aluminum, with pointer stop
- Pointer: Aluminum, black
- Connection : Brass
- Pressure Range: 0-15psi, 0-30psi, 0-60psi, 0-100psi
- Accuracy：+/-1%
Specifications

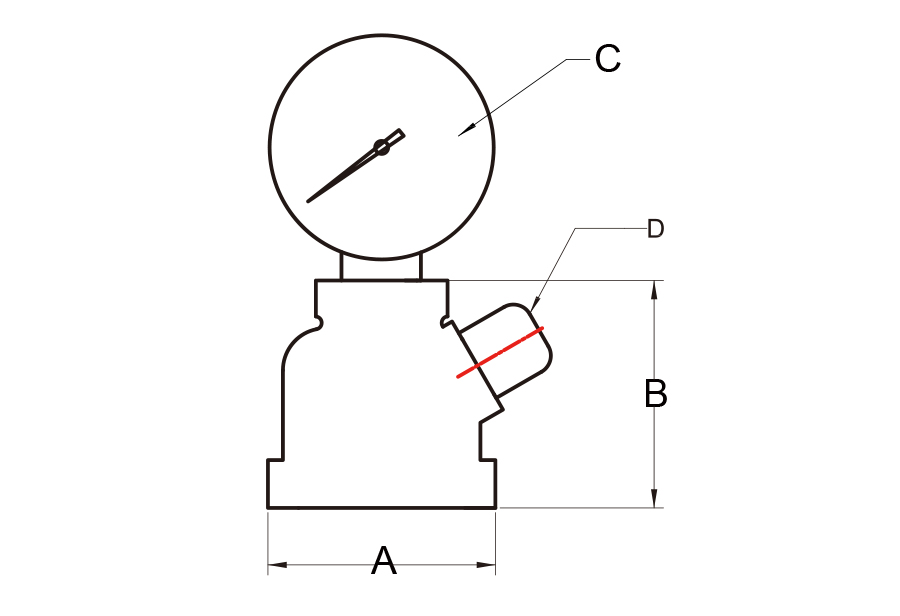

| Item No. | Specifications | A | B | C | D Connector |
| BT1215 | 1/2" 0-15 PSI | 1.2" | 1.4" | 2" | 1/16" NPT |
| BT3415 | 3/4" 0-15 PSI | 1.5" | 1.5" | 2" | 1/16" NPT |
| BT1015 | 1" 0-15 PSI | 1.8" | 1.7" | 2" | 1/16" NPT |
| BT1230 | 1/2" 0-30 PSI | 1.2" | 1.4" | 2" | 1/16" NPT |
| BT3430 | 3/4" 0-30 PSI | 1.5" | 1.5" | 2" | 1/16" NPT |
| BT1030 | 1" 0-30 PSI | 1.8" | 1.7" | 2" | 1/16" NPT |
| BT1260 | 1/2" 0-60 PSI | 1.2" | 1.4" | 2" | 1/16" NPT |
| BT3460 | 3/4" 0-60 PSI | 1.5" | 1.5" | 2" | 1/16" NPT |
| BT1060 | 1" 0-60 PSI | 1.8" | 1.7" | 2" | 1/16" NPT |
| BT12100 | 1/2" 0-100 PSI | 1.2" | 1.4" | 2" | 1/16" NPT |
| BT34100 | 3/4" 0-100 PSI | 1.5" | 1.5" | 2" | 1/16" NPT |
| BT10100 | 1" 0-100 PSI | 1.8" | 1.7" | 2" | 1/16" NPT |
