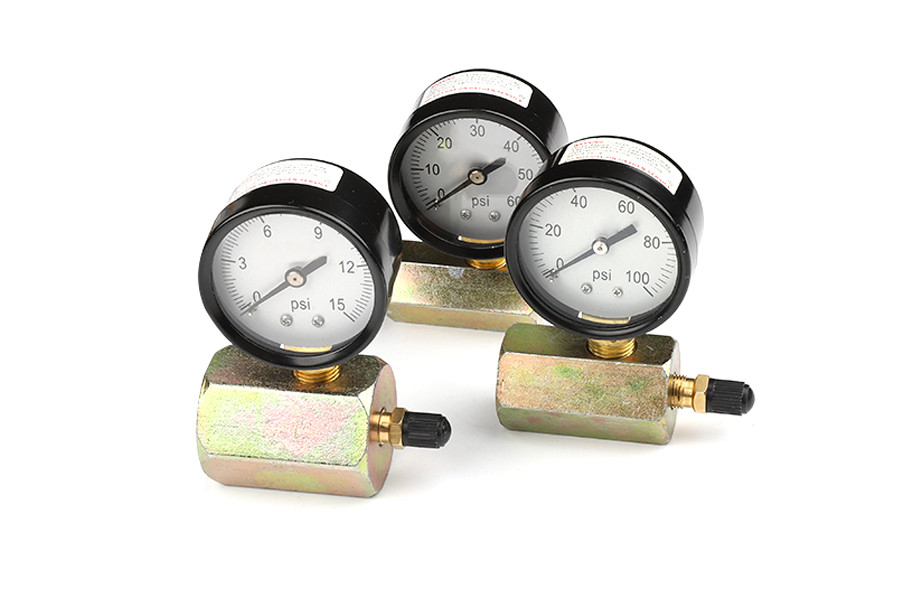

平行安装压力表
- 配备清晰易读表盘与精准刻度，便于读数。
- 结构坚固，密封性能优异，确保压力测试准确可靠。
- 仪表壳体坚固，保护内部元件。
产品概述
- 表壳材质：钢、黄铜
- 主体材质：钢
- 视窗材质：透明塑料
- 表面处理：镀锌
- 表盘尺寸：2 英寸
- 表盘底板：铝制，带指针限位装置
- 指针材质：铝制，黑色
- 连接口材质：黄铜
- 压力范围：0-15 psi、0-30 psi、0-60 psi、0-100 psi
- 精度等级：±1%
技术参数

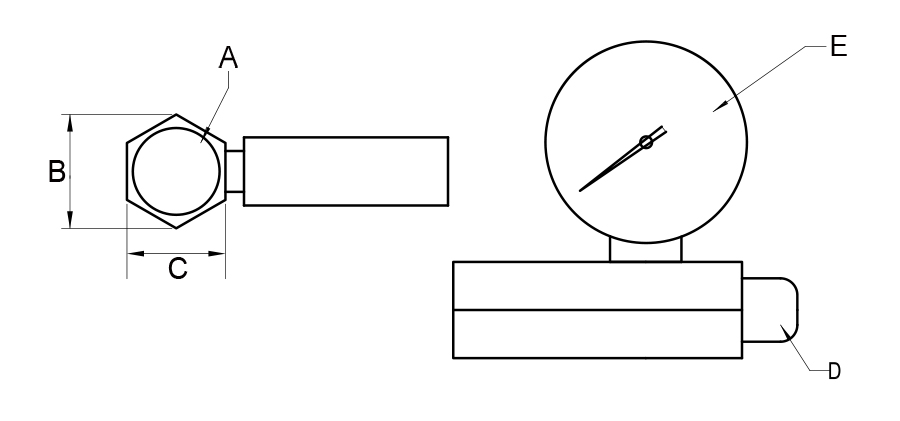

| 编号 | 描述 | A | B | C | D 接头 | E |
| BT1215H | 1/2" 0-15 PSI | 1/2" NPT | 1.0" | 0.9" | 1/16" NPT | 2" |
| BT3415H | 3/4" 0-15 PSI | 3/4" NPT | 1.25" | 1.1" | 1/16" NPT | 2" |
| BT1015H | 1" 0-15 PSI | 1" NPT | 1.6" | 1.4" | 1/16" NPT | 2" |
| BT1230H | 1/2" 0-30 PSI | 1/2" NPT | 1.0" | 0.9" | 1/16" NPT | 2" |
| BT3430H | 3/4" 0-30 PSI | 3/4" NPT | 1.25" | 1.1" | 1/16" NPT | 2" |
| BT1030H | 1" 0-30 PSI | 1" NPT | 1.6" | 1.4" | 1/16" NPT | 2" |
| BT1260H | 1/2" 0-60 PSI | 1/2" NPT | 1.0" | 0.9" | 1/16" NPT | 2" |
| BT3460H | 3/4" 0-60 PSI | 3/4" NPT | 1.25" | 1.1" | 1/16" NPT | 2" |
| BT1060H | 1" 0-60 PSI | 1" NPT | 1.6" | 1.4" | 1/16" NPT | 2" |
| BT12100H | 1/2" 0-100 PSI | 1/2" NPT | 1.0" | 0.9" | 1/16" NPT | 2" |
| BT34100H | 3/4" 0-100 PSI | 3/4" NPT | 1.25" | 1.1" | 1/16" NPT | 2" |
| BT10100H | 1" 0-100 PSI | 1" NPT | 1.6" | 1.4" | 1/16" NPT | 2" |
